2Pcs Latching Rotary Selector Switch with 110V LED lamp, 22mm 2 Positions,1 NO,1 NC,Green LED Light and Red LED Light Maintained Latching Rotary Selector Switches,Ith 10A Ui 660V

Product Name : LED Light Latching Rotary Selector Switch; Package content: 1 x Green Latching selector switch; 1 x Red Latching selector switch. Features: 110V LED light voltage, 1NO 1NC contact type, rotary selector action, 22mm panel cutout diameter. Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

• LED lamp voltage: 110V

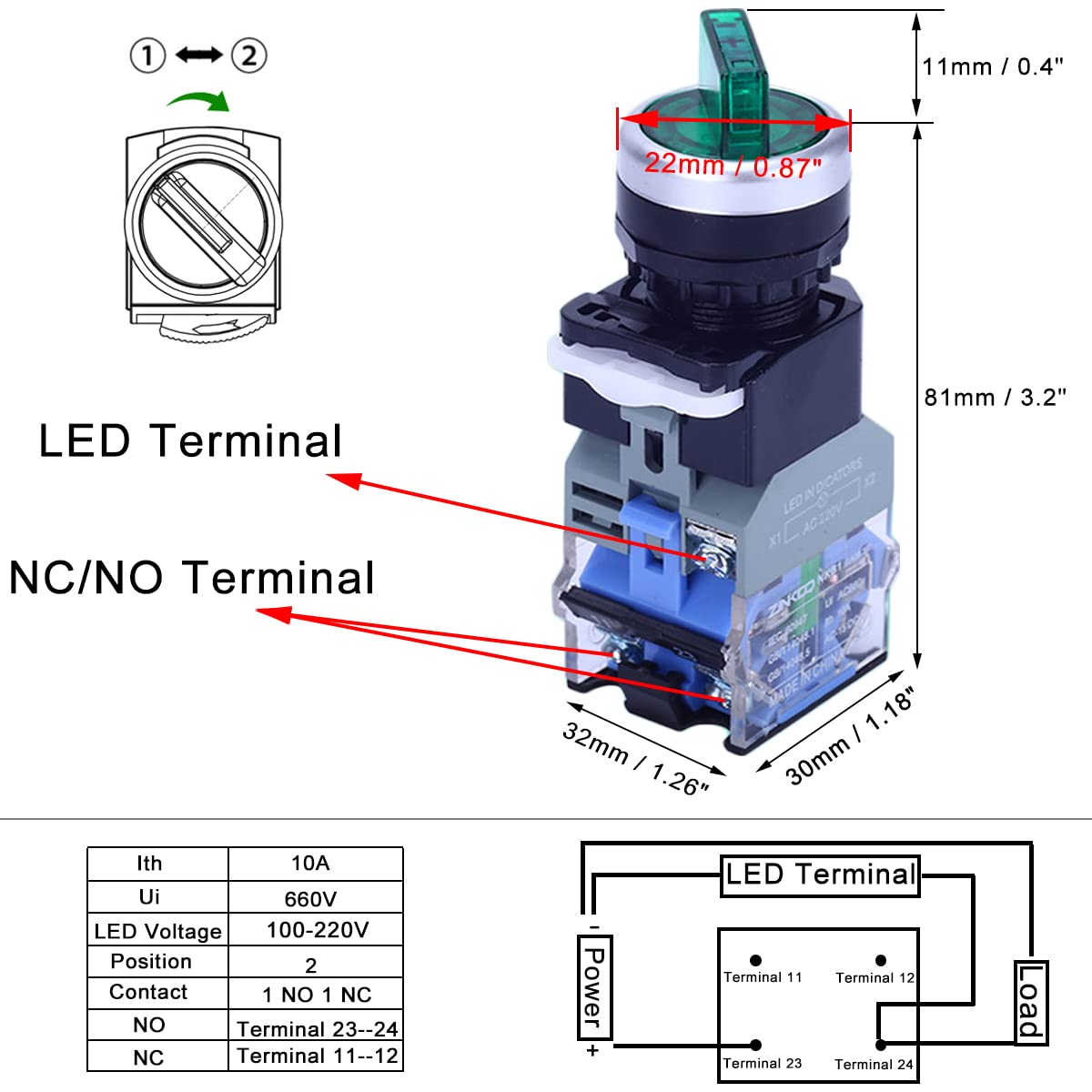

• Contact Type: 1 NO 1 NC; Position: 2 position; Please connect the normally open contacts (Terminal 23 and Terminal 24), the load is not energized in the initial state, turn the switch, then the load is energized. If connect the normally closed contacts (Terminal 11 and Terminal 12), the load is energized in the initial state, and the load is not energized by turning the switch.
• This Selector switch Exquisite workmanship,Using silver balance contacts and bright rectifier diode. Ith : 10A; Ui : 660V; Net weight : 61g/2.2 ounces; Contact Type : 1NO,1NC; Position: 2 position; Action Type : Latching.
• Mount Hole Diameter : 22mm / 0.87"(7/8") ;Fit Panel Thickness(Adjustable) : Max 8.5mm / 0.33";Switch Total Size(Approx) : 3.0 x 3.2 x 9.2cm/ 1.18" x 1.26" x3.62"(L*W*H)
• Package content: 1 x Green Latching selector switch; 1 x Red Latching selector switch.
