DC10G DC10K Generator Engine Multifunction Manual Start Stop Controller Panel(DC10G)
Product details
| Management number | 250377851 | Release Date | 2026/09/17 | List Price | US$36.21 | Model Number | 250377851 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

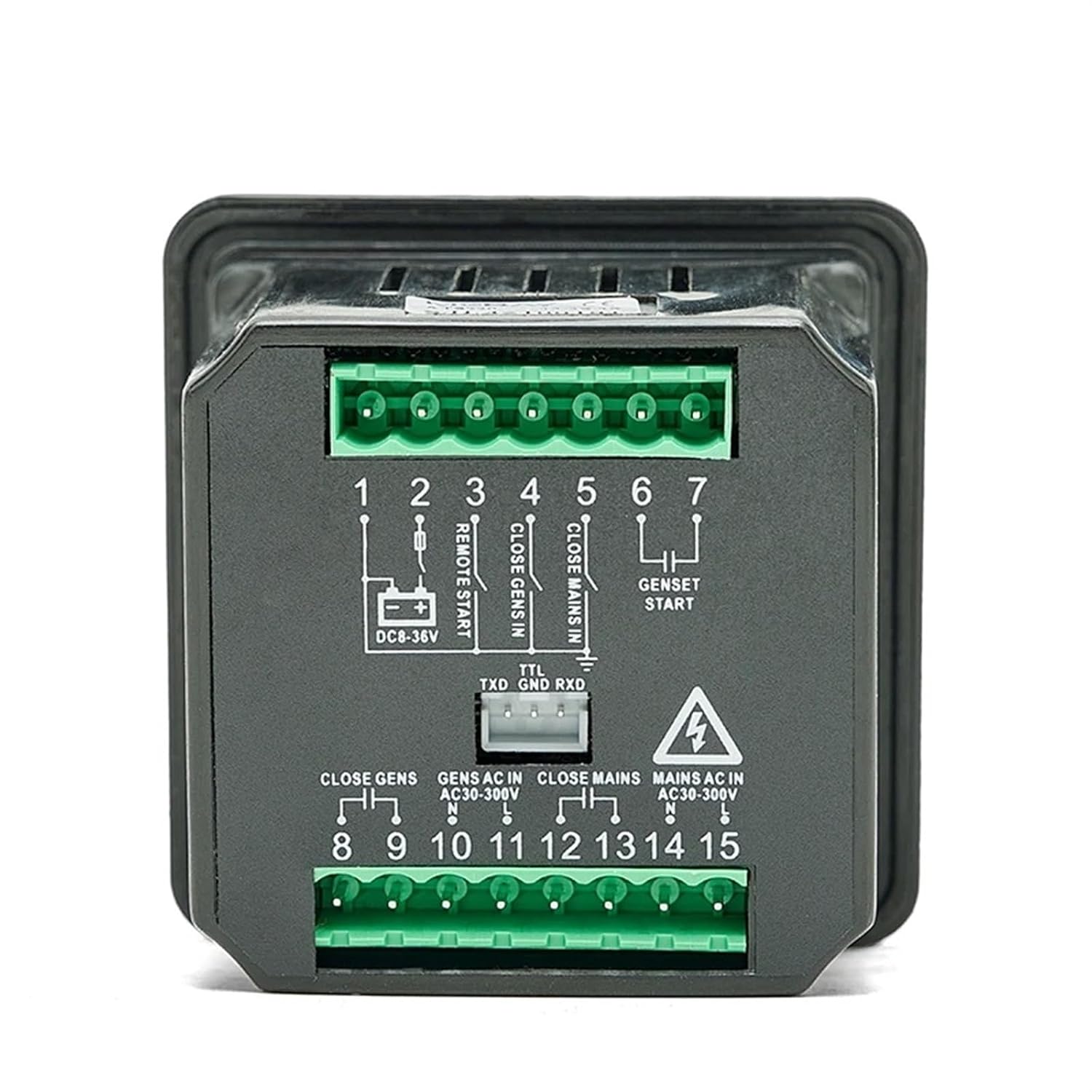

Electronic Engine ControlMultifunction DC10G DC10K Generator Set Controller engine manual start and stop controllerDescription:The DC10G is a controller for manual start and stop of the engine. The 4-bit LED digital tube displays the generator set frequency, voltage, battery voltage, and accumulated working time. It has various parking protection and alarm indication functions, which can conveniently monitor the working status of the generator set.The controller can be connected to the computer through the data line, and the controller parameters can be set by software to easily match the generator set of more specifications.DC10G/DC10K: the similar function, just different wiringSpecifications:Power supply:8-33VDCPower consumption:MAX 2W(WorkingAlternator Voltage input:15-300VAC,50/60HSpeed input:Freq 300Hz-10kHFuel output:MAX 16Start output:MAX 10Excitation Output:MAX 80mAlarm output:MAX 16Operating temperature:-30-75Storage temperature:-40-85Dimensions:78×78×72mPannel cutout:67×67mWeight:280gNote:- Due to lighting effects, monitor's brightness , contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item.
- Electronic Engine Control
- DC10G DC10K Generator Engine Multifunction Manual Start Stop Controller Panel
| ASIN | B0GWV3SS4V |
|---|---|
| Model | SEIRNHaBb |
| Brand Name | SEIRNHaBb |
| Part Number | SEIRNHaBb |
| Contact Type | Normally Closed |
| Manufacturer | SEIRNHaBb |
| Mounting Type | Chassis Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 A |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Specification Met | UL |
| Contact Current Rating | 1 A |
