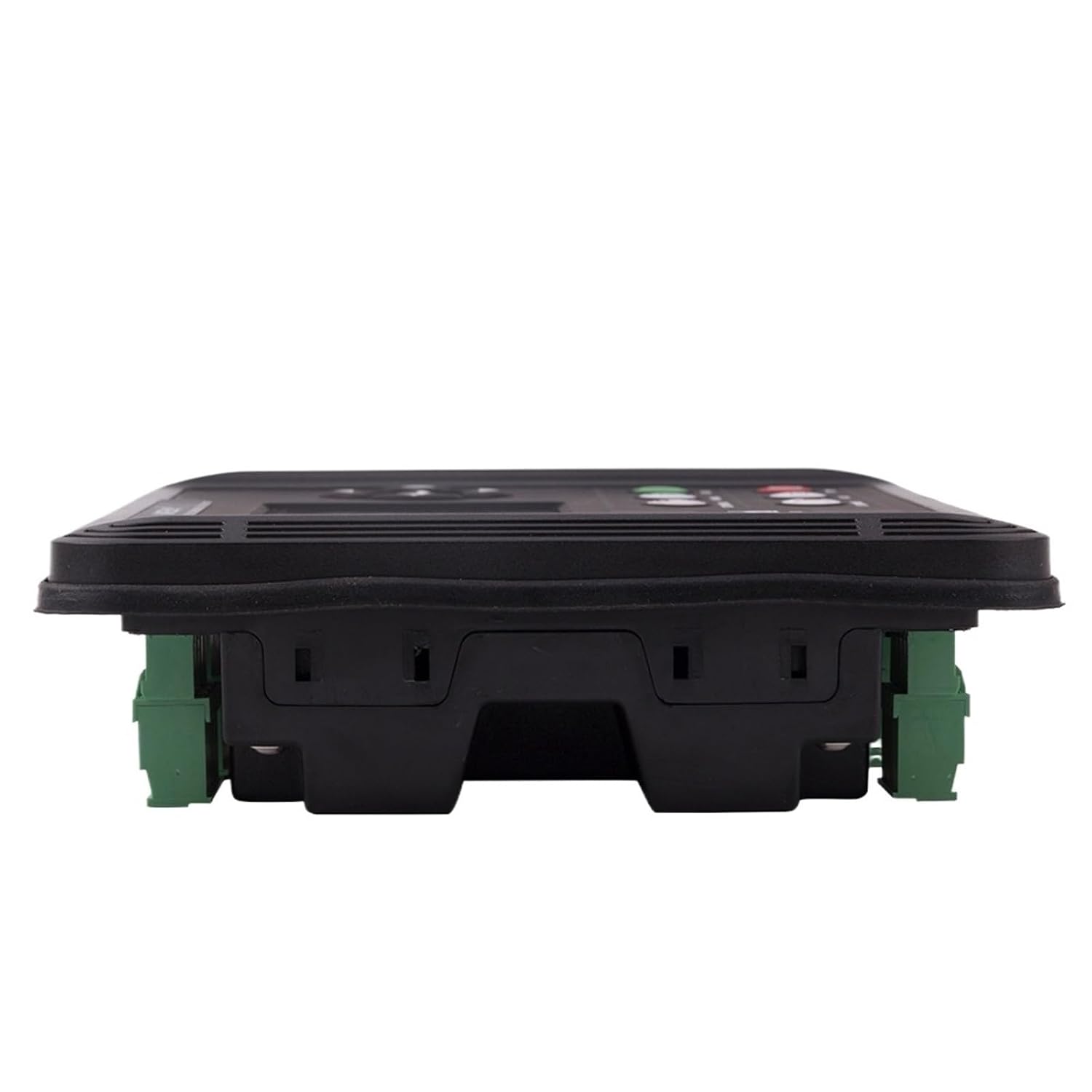

DC70D DC72D DC70DR DC72DR MK2 Generator Controller Display Auto Start Control Module Diesel Genset Parts(DC72DR)
Product details
| Management number | 250377869 | Release Date | 2026/09/17 | List Price | US$110.85 | Model Number | 250377869 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Electronic Engine ControlGenset Controller DC7XD Series This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting.difference:DC72D: Add Mains status showfunctionbased on DC70D;DC70DR: Add RS485 interface based on DC70D;DC72DR: Add RS485 interface based on DC72D;4.3 inch colorful screen display with UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words.Besides, screen can display various faults in the same time that the genset will be stopped once it can not work smoothly.There are Chinese/English interface options, more language can be set according to user's request. All the parameters can be configured through the frontface buttons or use programmable interface by RS485 or USB to adjust via PC.It can be widely applied for all kinds of auto control system of gensets.ParametersOptionsParametersWorking voltageDC8V----36V ContinuousPower consumptionStandby:24V:MAX 1WWorking:24V:MAX 5WAC Voltage Input1P2W 30VAC-276VAC(ph-N)2P3W 30VAC-276VAC(ph-N)3P4W 30VAC-276VAC(ph-N)Rotate speed sensor Frequency200-10000HzMAX Accumulating Time99999.9Hours(Min Store time:6min)Fuel Relay Output16Amp +VE Supply voltageStart Relay Output16Amp +VE Supply voltageProgrammable Relay output 15Amp +VE Supply voltageProgrammable Relay output 25AMP Non-contact-Normal open--Normal close outputProgrammable Relay output 35AMP Non-contact Normal Open outputProgrammable Relay output 45AMP Non-contact normal open outputProgrammable Relay output 55AMP Non-contact-Normal open--Normal close outputExcitation outputMax 1AMP +VE supply voltageSwitch value inputAvailable if connecting with Battery -Working condition-20-65Storage condition-40-85Protection LevelIP54:when waterproof rubber gasket is added between controller and its panelOverall dimension210mm*160mm*50mmPanel cutout186mm*142mmWeight0.9Kg
- Electronic Engine Control
- DC70D DC72D DC70DR DC72DR MK2 Generator Controller Display Auto Start Control Module Diesel Genset Parts
| ASIN | B0GKVP9V7S |
|---|---|
| Model | SEIRNHaBb |
| Brand Name | SEIRNHaBb |
| Part Number | SEIRNHaBb |
| Contact Type | Normally Closed |
| Manufacturer | SEIRNHaBb |
| Mounting Type | Chassis Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 A |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Specification Met | UL |
| Contact Current Rating | 1 A |
