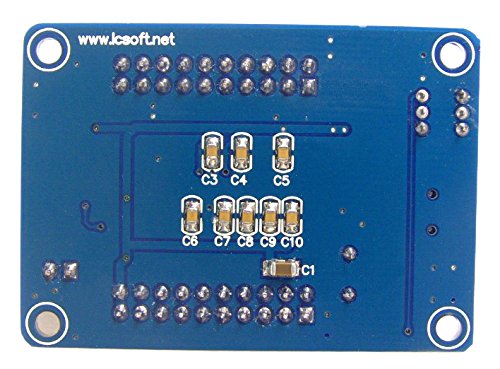

EZ-USB FX2LP CY7C68013A USB Developement Board Logic Analyzer
Product details
| Management number | 250346874 | Release Date | 2026/09/17 | List Price | US$5.44 | Model Number | 250346874 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description： 1. With CY7C68013A-56 chip: low-power version of the enhanced 51-core, 16KBprogram data areas, frequency of 48Mhz, 480Mbps high-speed transmission protocol standards, Compliant with USB2.0 specification, compatible with USB1.1; 2. Firmware, EEPROM: Complete in-system programming solution with a USB cabledirectly to download firmware, on-board to provide 16K (24LC128) a large program memory (EEPROM), used as storage VID / PID and the USB firmware, the program space to meet the CY7C68013A Needs. 3. All the GPIO pin through the 2.54mm standard leads to very convenient for learners toexpand DIYdesign. 4. With the board firmware can be achieved through the core function of the logic analyzer 5. PDF format, provide the schematic and code Package list： 1 x EZ-USB FX2LP CY7C68013A USB Developement Board
- With CY7C68013A-56 chip: low-power version of the enhanced 51-core, 16KBprogram data areas, frequency of 48Mhz, 480Mbps high-speed transmission protocol standards, Compliant with USB2.0 specification, compatible with USB1.1;
- Firmware, EEPROM: Complete in-system programming solution with a USB cabledirectly to download firmware, on-board to provide 16K (24LC128) a large program memory (EEPROM), used as storage VID / PID and the USB firmware, the program space to meet the CY7C68013A Needs.
- All the GPIO pin through the 2.54mm standard leads to very convenient for learners toexpand DIYdesign.
- With the board firmware can be achieved through the core function of the logic analyzer
| ASIN | B07Z8W5GSR |
|---|---|
| Model | EZ-USB FX2LP CY7C68013A |
| Frequency | 48 MHz |
| Brand Name | Jolooyo |
| Cable Type | USB |
| Item Shape | Round |
| Unit Count | 1 Count |
| Part Number | EZ-USB FX2LP CY7C68013A |
| Manufacturer | Jolooyo |
| Connector Type | USB Type A |
| Number of Pins | 4 |
| Maximum Voltage | 525 Millivolts |
| Connector Gender | Male-to-Female |
| Specification Met | USB-IF |
| Compatible Devices | Personal Computer, Laptop, Tablet, Smartphone, Router, Docking Station, Gaming Console, Mouse, Keyboard, USB Hub |
| Data Transfer Rate | 480 megabits_per_second |
| Included Components | inc |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Connectivity Technology | USB |
| Recommended Uses For Product | Electronics prototyping, debugging, learning |
| Other Special Features of the Product | High Speed |
