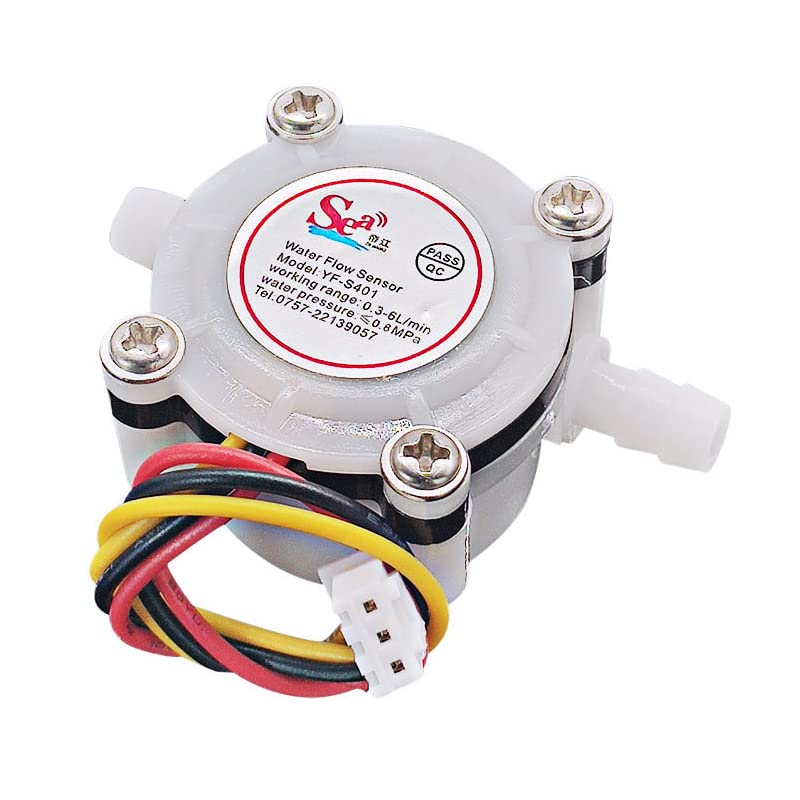

G1/4" Quick Connect Coffee Maker Water Flow Sensor Food-Grade Switch Hall Effect Flowmeter Fluid Meter Counter 0.3-6L/min YF-S402

Specification:Model: YF-S4011/4" pagoda tubeExternal threads: 1/4"temperature: -25~+80 centigradeAllowing pressure: pressure 1.75MpaOperating humidity range: 35%~90%RH (no frost)Use temperature: 80centigradeLoad capacity: 10 mA (DC 5V)Working voltage range: DC 5~18 vMaximum operating current: 15 mA (DC 5V)The lowest rated working voltage: DC4.5 5V-24VModel: YF-S402G1/4 tubeMonitoring Range: 0.3-6LAccuracy: 3%Wiring Method: Red +, Black -, Yellow For Signal Output (NPN Pulse Signal)Water Pressure Resistance: 0.35MPaOperating Voltage Range: DC5~24VInsulation Resistance: >100MAccuracy: (in 0.15-3L / Min) 2%Flow Pulse Characteristics: f = (73 * Q) 2% Q = L / MinOutput Pulse High Level: >DC 4.7V (input voltage DC 5V)Output Pulse Duty Cycle: 50% 10% Model: YF-S402BG1/4 inch PE tubeRated voltage DC=5V inspection standardProduction quantity PCS product batch numberNo. Inspection item Standard requirementsAppearance The product identification is clear and accurate and meets the requirements.Water pressure resistance 0.35MPaWorking voltage range DC524VInsulation resistance >100MAccuracy [in 0.3~3L\min]Flow pulse characteristics f=(38*Q) 2% Q=L/MINOutput pulse high level > DC 4.7V (input voltage DC 5V)output pulse low levelOutput pulse duty cycle 50% 10%Color : whiteRed IN connect the anodeYellow OUT signal output lineBlack GND connect the cathodePackage List: 1pc X Coffee Maker Water Dispenser Flowmeter Flow Sensor

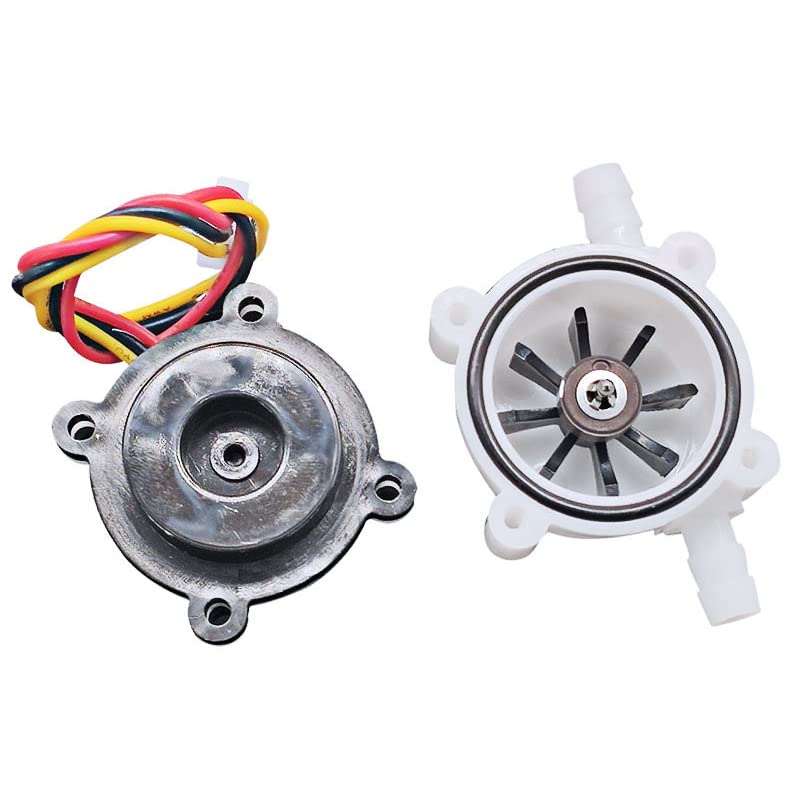

• The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.
• There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
• Output Waveform: Square Wave,output pulse signal.
• Waterproof, heat resistance, pressure resistance, cold resistance.
• Working voltage range: DC 5-18 V
