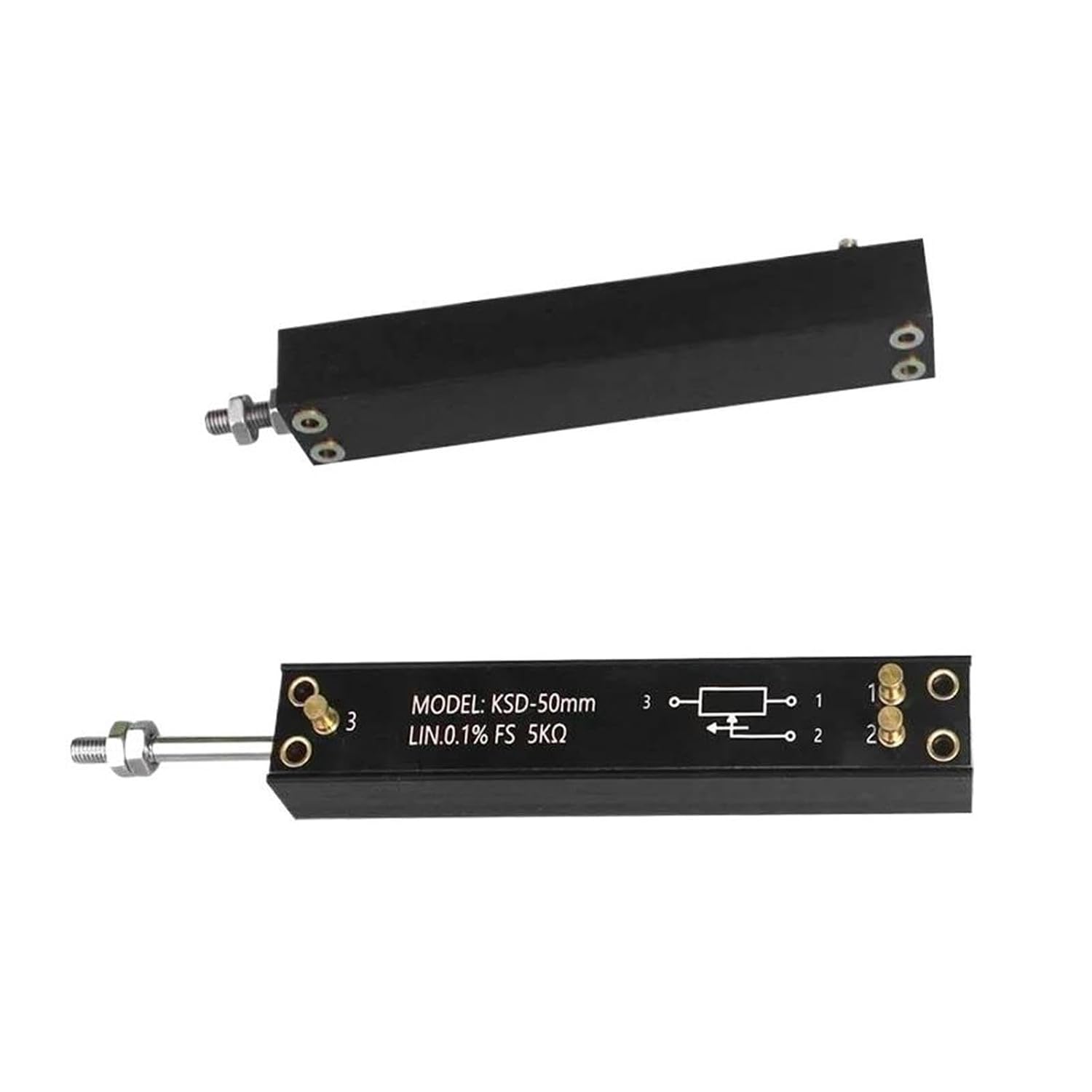

Linear Position Sensor KSD High Precision Pull Rod Displacement Sensor Resistance Ruler

Product DescriptionKSD linear potentiometer/linear displacement sensor 13FLP (alias: electronic ruler, resistance ruler, potentiometer, linear displacement sensor) Principle: Potentiometer principle, all sensors are position measurement type, used in the adjustment system (control system) and measurement system, to directly measure the displacement and length, output DC voltage signal, can also be converted into the standard 0-5V, 0-10V or 4-20mA DC signal through the built-in or external V/A converter module. Can also be transmission control requirements. KSD linear potentiometer/linear displacement sensor 13FLP (alias: electronic ruler, resistance ruler, potentiometer, linear displacement sensor) output displacement variation: 0-100% given input operating voltage (with displacement changes).Technical DataKSD Linear Position Sensor12.5mm-25mm50mm100mmLinear Precision (±%FS)±0.1%,±0.25%Resistance (±10%)2 5K5KOutput signalstandard: 0~100% × input voltage (change with the movement of the rod)optional: 0-5V/0-10V/4-20mA/RS485 output need an extra moduleMechanical strokerange+3mmResolutionInfiniteRepeatability Precision0.01mmMax Speed5m/SRecommended Temperature-20~+80Sensitivity1 Temperature DriftinfinitesimalProtection levelIP65Useful electrical stroke(mm)12.5mm 25mm 50mm 100mmInstallation Size (mm)KSD linear potentiometer/linear displacement sensor 13FLP signal output type:Resistance output type (potentiometer) : 2K , 5kVoltage output type (external/built-in module) : 0-5V 0-10VCurrent output type (external/built-in module) : 4-20mA (two-wire system, three-wire system)Digital signal (external/built-in module) : RS485KSD linear potentiometer/linear displacement sensor 13FLP application field:KSD linear potentiometer/linear displacement sensor 13FLP (miniature pull rod type) small size, compact structure, easy installation, widely used in micro control system. Such as: servo control valve position detection and control, equipment, leather machinery, die closing control, IT equipment, paper machinery, textile machinery, ship steering system, and other displacement detection occasions.Electronic : NoModel Number : KSD Linear Displacement SensorDIY Supplies : ElectricalOrigin : Mainland ChinaOutput Voltage : Analog SensorItem : KSD Linear Displacement SensorMeasurement Stroke : 12.5-100mmLinearity : 0.25%FSResistance : 2kilohm/5KResolution : InfiniteRepeatability Precision : 0.01mmPower Supply : 5V~24VOutput : analog output
