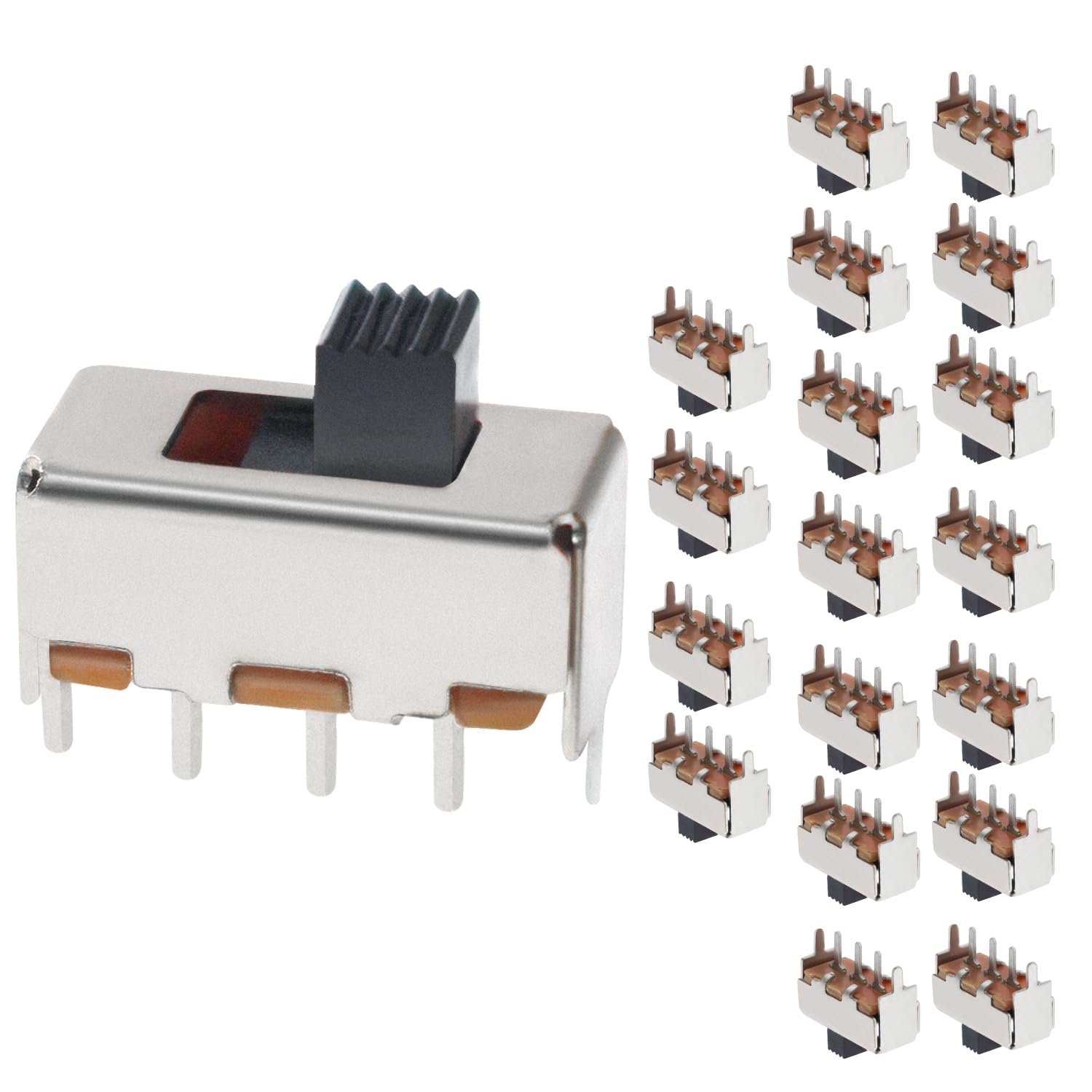

Mini Micro Slide Switch - 1p2t 2 Position - 20pcs SPDT Toggle Switch - Panel Mount Small High Knob Vertical for Breadboard PCB Arduino Electronic Board - (SS12F15) 5mm - Dip Miniature Slide Switch
US$2.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by daanverpumps.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$2.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by daanverpumps.com
Free 30-day returns Details
Product details
| Management number | 250054308 | Release Date | 2026/09/17 | List Price | US$2.40 | Model Number | 250054308 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
◤Product Features◥● ● Modle: SS12F15 5MM● ● Size: 19.7 x 5.6 x 13mm (L x W x H)● ● Sliding Knob Length: 5mm / 0.2"● ● Pin Pitch: 3mm● ● Contact Type: SPDT on-off● ● Terminal Length: 3mm● ● Terminal Quantity: 3 pins● ● Connector Type: Vertical Through Hole● ● Mounting Type: Panel Mount● ● Type: 1 Pole 2● ● Color: Black● ● Material: Plastic,Metal,● ● Rated Voltage: DC 50V● ● Rated Current: 0.5A● ● Electrical Life: More than 100,000 click● ● High Temperature Resistance: --16.6℉ ~ 158℉● ● Package: 20 Pcs x SS12F15 5MM Slide Switch
- Slide Switch Specification - Modle: SS12F15; Size: 19.7 x 5.6 x 13mm (L x W x H); Pin Pitch: 3mm; Contact Type: SPDT on-off; Terminal Length: 3mm; Terminal Quantity: 3 pins; Sliding Knob Length: 5mm / 0.2"; Connector Type: Vertical Through Hole; Mounting Type: Panel Mount; Slide Switch Type: 1 Pole 2 Throw. Color: Black.
- Durable Material - Plastic,Metal,Brass,Sliver Plated: Anti-corrosion and high conductivity; Rated Voltage: DC 50V; Rated Current: 0.5A:Electrical Life: More than 100,000 click;High Temperature Resistance: -16.6℉ ~ 158℉.Can be used for a long time.
- Wide Use - Slide Switch used for control the operation of many low-power electronic projects,Arduino, Breadboard, Electronic Circuits, Electronics Board, Microphone, Audio, Video volume, Electric Circuit, Lighting dimming control,Position Solder, Etc.

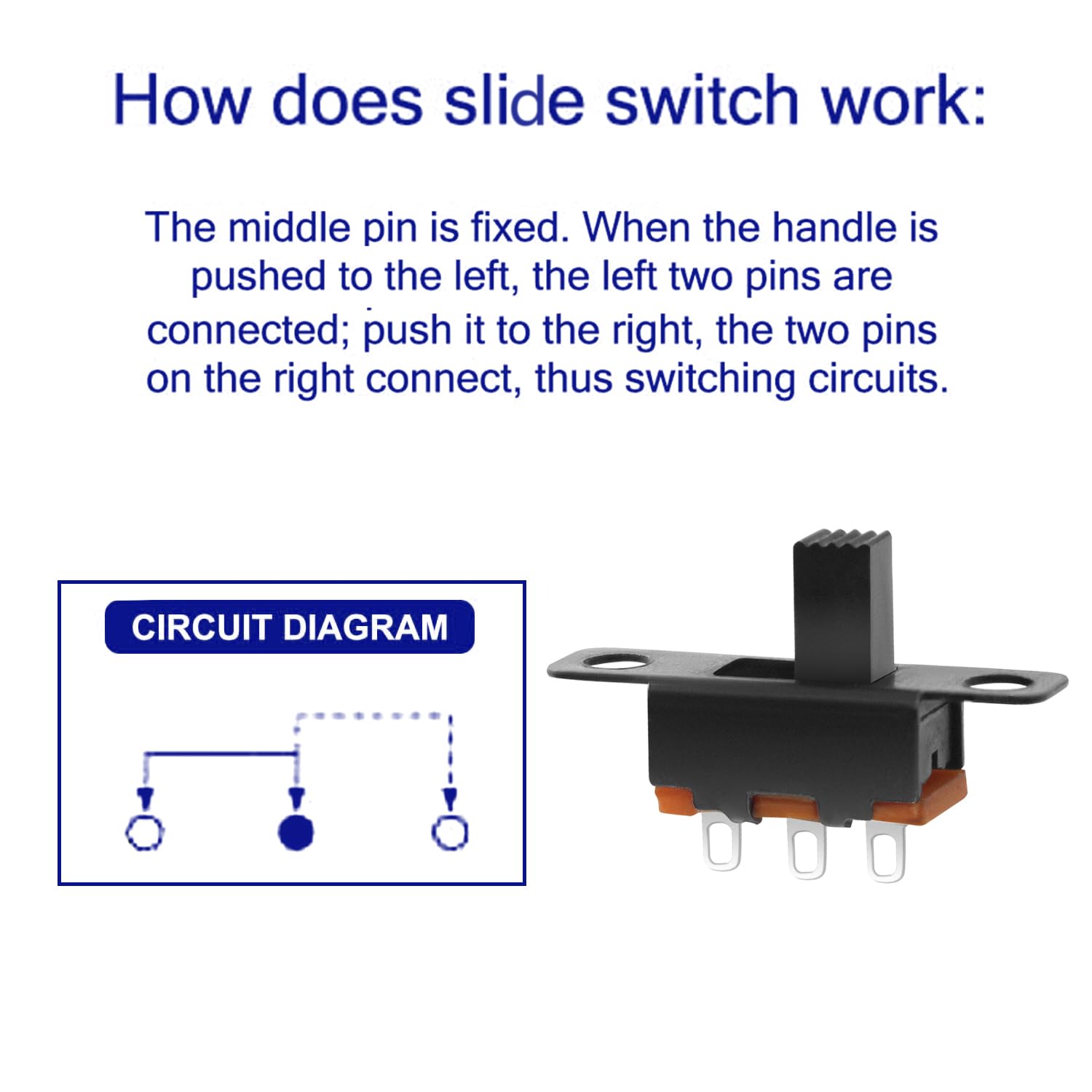

- How Do Tactile Swithch Work - The middle pin is fixed. When the handle is pushed to the left, the left two pins are connected, push it to the right, the two pins on the right connect, thus switching circuits.
- Package - 20 Pcs x 5MM SS12F15 Slide Switch
| ASIN | B0DN69L9SG |
|---|---|
| Color | SS12F15-5mm-20pcs |
| Terminal | Through Hole |
| Brand Name | WOWOONE |
| Part Number | SS12F15-5mm-20pcs |
| Switch Type | Slide |
| Circuit Type | 2 position |
| Contact Type | Spdt |
| Control Type | Binary |
| Manufacturer | WOWOONE |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Vertical Through Hole |
| Current Rating | 0.5 A |
| Operation Mode | ON-ON-OFF |
| Maximum Current | 0.5 A |
| Number of Packs | 20 |
| Contact Material | Brass |
| Operating Voltage | 50 volts_of_direct_current |
| Specification Met | No |
| Compatible Devices | Arduino, Breadboard, Electronic Circuits, Electronics Board, Microphone, Audio, Video, Electric Circuit, Lighting, Position Solder |
| Included Components | 1 |
| Number of Positions | 1 |
| Upper Temperature Rating | 158 °C |
