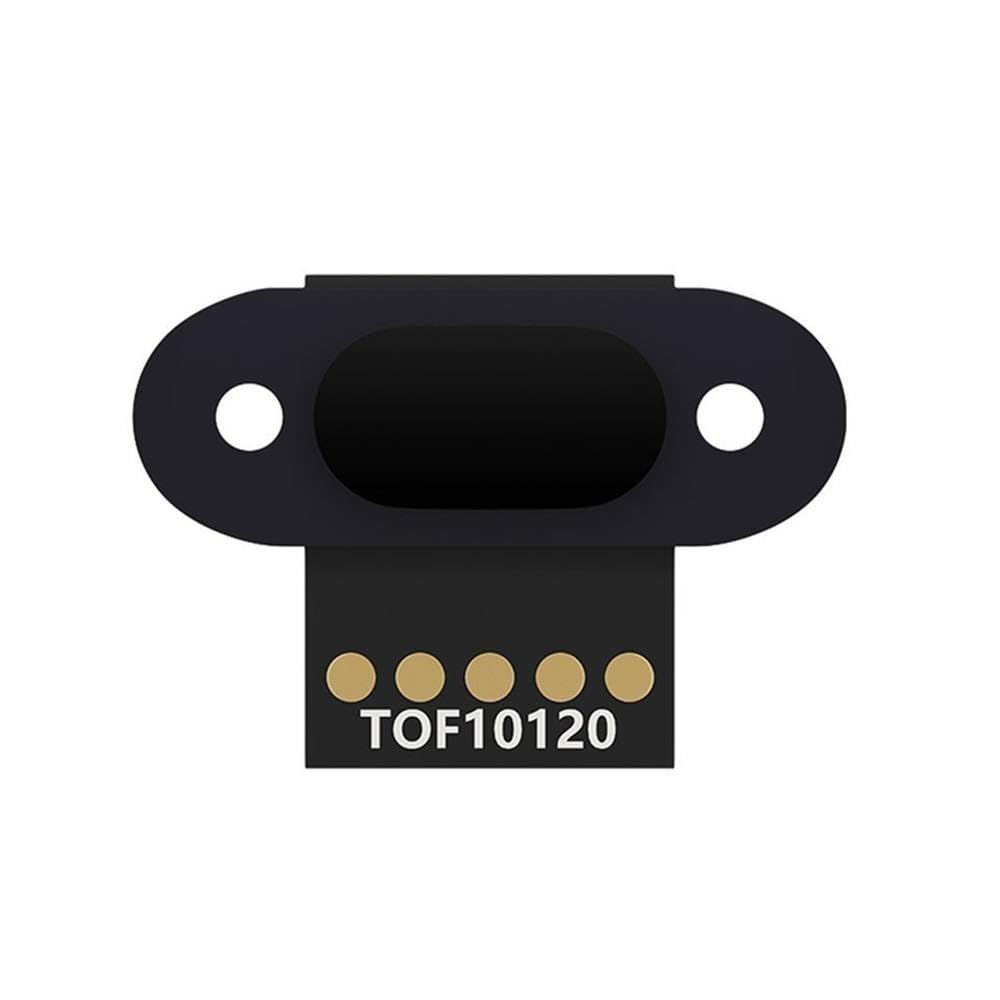

TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor RS232 Interface UART I2C IIC Output 3-5V with Cable

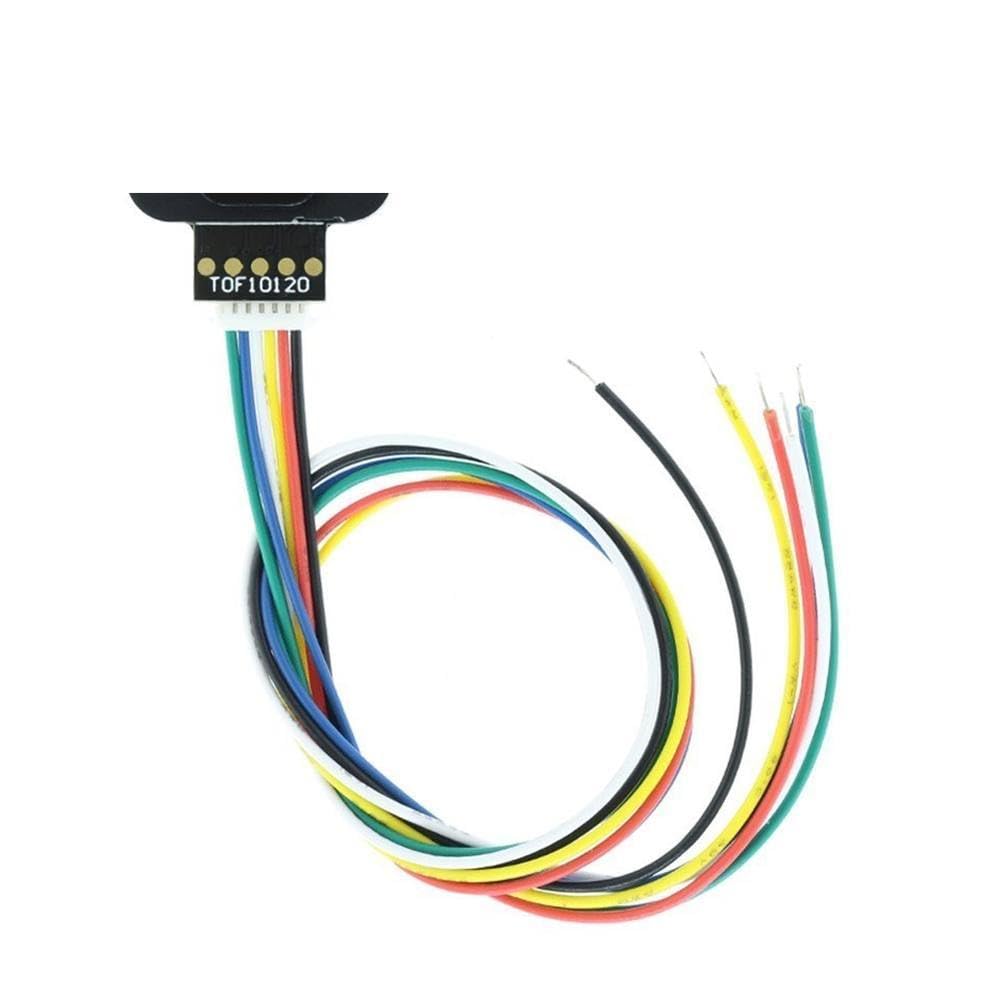

Product introduction: TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows. performance independent of object reflectance. TOF10120's time-of-flight sensing technology is realized by SPAD (Single Photon Avalanche Diodes ) using standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design. Product Parameter: Type: TOF10120 Robot (obstacle detection) cleaning robot, human body detector, amusement equipment High speed auto focus Video continuous autofocus User detection PC/laptop/tablet White Home appliance(manual automatic detection of faucets, bathroom equipment, lighting control refrigerators), etc.. Cable: spacing 1.0mm 6P single head line length 20cm USB serial port TTL read distance data passed Power supply 3~5V Ground GND (RXD-TXD) (TXD-RXD) rduino board connection distance sensor, UART read distance data through RXD-TXD, I2C read distance data through A4-A5, UART read to remove A4-A5 Ardunio code upload program, to remove the module after uploading successfully and then connect to Code UART, one for each I2C Application: 940nm laser classified as class 1 under operation condition by IEC 60825-1:2014-3rd edition Long range absolute range measurement up to 1.8m within 5％ accuracy at indoor Reported range is independent of the target reflectance Operates in high infrared ambient light levels Advanced optical cross-talk compensation High speed ranging MAX 30ms Standard solder reflow compatible No additional optics Single power supply Txd interface for device control and data transfer High-speed AF Conti
